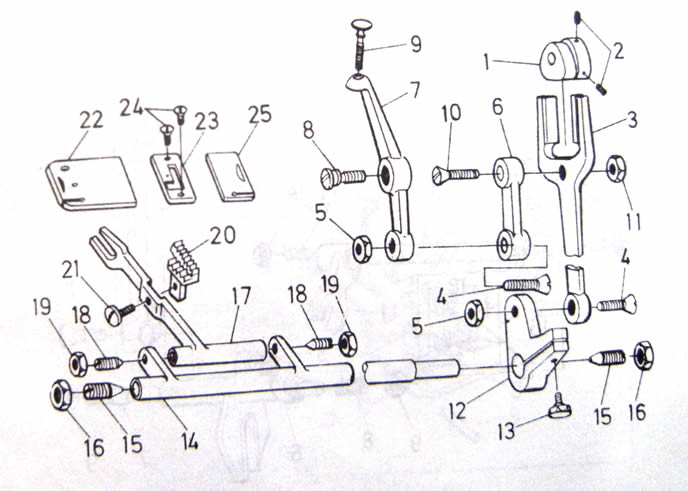

7. Feeding
|
1 |
GT103 |
Feeding cam |
14 |
GH128 |
Feeding shaft |
|
2 |
GS165 |
Feeding cam screw |
15 |
GS169 |
Large peaked screw |
|
3 |
GH125 |
Tooth fork |
16 |
GL109 |
Large peaked nut |
|
4 |
GS166 |
Needle space connecting rod screw |
17 |
GR261 |
Tooth bracket |
|
5 |
GL105 |
Needle space connecting rod nut |
18 |
GS170 |
Small peaked screw |
|
6 |
GH126 |
Needle space connecting rod |
19 |
GL105 |
Small peaked nut |
|
7 |
GR260 |
Needle space base |
20 |
GM106 |
Feeding tooth |
|
8 |
GS167 |
Slant range base screw |
21 |
GS171 |
Feeding tooth screw |
|
9 |
GS168 |
Slant range adjustable screw |
22 |
GR262 |
Large push pedal |
|
10 |
GS166 |
Tooth fork connecting screw |
23 |
GM107 |
Needle plate |
|
11 |
GL105 |
Tooth fork connecting nut |
24 |
GS172 |
Needle plate screw |
|
12 |
GH127 |
Feeding crank |
25 |
GR236 |
Small push pedal |
|
13 |
GS148 |
Feeding crank screw |
|
|
| |
| |
|
 |
|
